Fruzsina Bódis
Gábor Orosz2- 1Department of Otorhinolaryngology and Head and Neck Surgery, Semmelweis University, Budapest, Hungary
- 2Department of Anaesthesiology and Intensive Therapy, Semmelweis University, Budapest, Hungary
- 3Department of Surgery, Transplantation and Gastroenterology, Semmelweis University, Budapest, Hungary
Background: Performing tracheostomy improves patient comfort and success rate of weaning from prolonged invasive mechanical ventilation. Data suggest that patients have more benefit of percutaneous technique than the surgical procedure, however, there is no consensus on the percutaneous method of choice regarding severe complications such as late tracheal stenosis. Aim of this study was comparing incidences of cartilage injury caused by different percutaneous dilatation techniques (PDT), including Single Dilator, Griggs’ and modified (bidirectional) Griggs’ method.
Materials and methods: Randomized observational study was conducted on 150 cadavers underwent post-mortem percutaneous tracheostomy. Data of cadavers including age, gender and time elapsed from death until the intervention (more or less than 72 h) were collected and recorded. Primary and secondary outcomes were: rate of cartilage injury and cannula malposition respectively.
Results: Statistical analysis revealed that method of intervention was significantly associated with occurrence of cartilage injury, as comparing either standard Griggs’ with Single Dilator (p = 0.002; OR: 4.903; 95% CI: 1.834–13.105) or modified Griggs’ with Single Dilator (p < 0.001; OR: 6.559; 95% CI: 2.472–17.404), however, no statistical difference was observed between standard and modified Griggs’ techniques (p = 0.583; OR: 0.748; 95% CI: 0.347–1.610). We found no statistical difference in the occurrence of cartilage injury between the early- and late post-mortem group (p = 0.630). Neither gender (p = 0.913), nor age (p = 0.529) influenced the rate of cartilage fracture. There was no statistical difference between the applied PDT techniques regarding the cannula misplacement/malposition.
Conclusion: In this cadaver study both standard and modified Griggs’ forceps dilatational methods were safer than Single dilator in respect of cartilage injury.
Introduction
Prolonged invasive mechanical ventilation of a patient via orotracheal tube may cause several early and late intubation-associated complications including pneumonia, pressure ulcers of the surrounding tissues, tracheal stenosis, etc. It is also highly responsible for patient discomfort due to swallowing incompetence, impaired communication ability and poor mouth hygiene. To avoid these complications and enhance patient comfort currently it is widely accepted to perform either surgical or percutaneous tracheostomy for patients who need prolonged mechanical ventilation (1–4).
The first widely accepted percutaneous tracheostomy technique was described by Pat Ciaglia, which involved a series of sequential dilatations using a set of seven dilators of progressively larger size (5). A variant of this technique, using a single tapered dilator is called the Ciaglia Blue RhinoTM (Cook Medical, Bloomington IN, United States) method which is now most commonly used, especially in the United States and United Kingdom (6). There is a very similar method to this when a balloon is introduced over a guidewire to dilate the stoma (7). In PercuTwistTM (Teleflex, Athlone, Ireland) technique, a specially designed screw-type dilator is introduced over a guidewire and its rotation dilates the stoma (8). Another widely used technique was developed by William Griggs who suggested to use specifically modified forceps enabling the performance of the main dilation in a single step (9). The other great advance of this technique is that all the aforementioned methods require pressure over the anterior wall during dilation risking a possible posterior tracheal wall injury (6). An interesting alternative was described by Fantoni, where the dilator and the tracheostomy tube are pulled through the larynx in a retrograde fashion (10).
The spread of percutaneous techniques raised the number of successful bedside tracheostomy operations, and percutaneous dilatational tracheostomy (PDT) gained popularity to become the technique of choice for long-term airway management in mechanically ventilated patients. However, these interventions have their own hazards: the major early complication is hemorrhage and one of the most dangerous and relatively common late complication is tracheal stenosis. Severe tracheal stenosis occurs in 3%–12% of patients undergoing PDT (11, 12) which is considered an excruciating late complication of tracheostomy with significant impact on quality of life. Mechanisms of postintubational and posttracheostomy tracheal stenosis are not clearly identified. After a long term intratracheal intubation the cause could be ischaemia of the mucous membrane, pressure ulceration or granulation tissue, while in case of trauma tracheal stenosis is rather caused by cartilage injury as it was described in trauma patients and in canine model (13–19). A. Marchion et al published a molecular, histolgical study in 2022. They found that the reason could be aberrant wound-healing, fibrotic scarring and iatrogenic aetiology as trauma of the tracheal mucosa, and of the tracheal cartilage; (20). As there is a possible causative relationship between the fracture of the cartilage during the PDT procedure and the aforementioned tracheal stenosis, in this study we wanted to investigate how common cartilage fracture is when performing PDT on cadavers with the two most common methods, namely Griggs’ and single dilator (Rhino), and we also reevaluated and compared our previously described modified Griggs’ method (in which we make a wider incision, blunt preparation, and bidirectional forceps dilation of the tracheal wall, e.g. standard horizontal and novel vertical) with them (21). The further late complications such as tracheomalacia, tracheoinominate artery fistula and tracheoesophageal fistula occur each in <1%. Tracheaomalacia usually caused by the high cuff pressure of the tracheal tube. This and the intraoperational perforation of the posterior tracheal wall could also be the cause of the tracheoesophageal fistula. If the tracheostomy tube is positioned under the 4th tracheal cartilage the risk of the development of the tracheoinominate artery fistula is higher. These late complications cannot be investigated on cadavers (12–27).
Materials and methods
Our cadaver study was performed at the 1st Department of Pathology and Experimental Cancer Research of Semmelweis University with permission of Semmelweis University Regional and Institutional Committee of Science and Research Ethics (117-1/2006 SE-RKEB; 2014.03.17). Data were collected anonymized. Data analysis and statistical plan was written and filed with a private entity before data were accessed.
The simple-blinded observational method was carried out by two experts in the field of surgical and percutaneous tracheostomies—by an intensive care specialist and an ENT surgeon with additional specialization of intensive care medicine—both for more than 5 years at a University hospital. The first expert had performed the procedures and the second one had checked the results, respectively.
Cadavers (who were not intubated before death) were collected; autopsies as well as preparation of the airway complexes from the cadavers following tracheostomy were carried out by mortuary technician. Site of tracheal cannula insertion, estimation of tracheal cartilage damage were scored by the non-operator expert without the knowledge of the insertion technique.
Insertion site was scored as 1: cricoid-1st tracheal ring space; 2: 1st-2nd tracheal ring space; 3: 2nd-3rd tracheal ring space. Estimation of ring injuries was classified as: 1: none; 2: one ring fractured; 3: two or more rings fractured.
Data about the cadavers [e.g., date and time of death (72 h or more before intervention), age, gender] as well as the lack of exclusion criteria (e.g., previous laryngo-tracheal disease, injury, previous tracheostomy, visible or palpable damage on the neck) were collected and recorded on individual sheets with registration numbers.
Randomization was carried out by a 6-sided dice: Nr 1-2, 3-4 and 5-6 were linked with traditional Griggs (n = 51), modified Griggs (n = 55) and Single Dilator methods (n = 44), respectively.
Cadavers were positioned in standard hyperextended position for tracheostomy, and the exact method was performed according to the randomization. Details of the procedures are briefly presented below [13] and were discussed previously elsewhere. [14] Percutaneous tracheostomy kits available from the market were used. For traditional and modified Griggs’ technique Portex® GRIGGS© Percutaneous Dilation Tracheostomy Kit with Blue Line Ultra® tubes in different sizes were used according to the needs. For Ciaglia method Portex® ULTRAperc© Single Stage Dilator Technique Kit with Blue Line Ultra® tubes were applied in the same manner.
Skin incisions were performed at the midpoint of cricoid cartilage and jugulum. Traditional Griggs’ technique:, no surgical preparation, direct tracheal puncture and unidirectional (transverse) tracheal dilation were performed followed by the insertion of tracheostomy cannula (9).
Modified Griggs’ technique: a maximum 50 mm-wide skin incision, surgical pretracheal tissue preparation, and careful, visualized bidirectional (transverse and longitudinal) intercartilaginous forceps dilation of tracheal wall were performed (21). The wider horizontal skin incision provided enough space for secure pretracheal preparation until the tracheal wall could be visualized as well as palpated in our modified technique. Preparations were performed using blunt technique, and Griggs-modified dilating forceps were used in order to ascertain tissue resistance followed by the tracheal puncture according to Watters recommendations (28). Visualized tracheal wall puncture next to the palpating finger and continuous aspiration of air secured correct intratracheal needle position according to Paran’s recommendation (29). Insertion of the guidewire followed by the introducer was the following step. Griggs-modified dilating forceps were introduced using the guidewire, according to the standard method, as deep as approximately 15 mm from the axis of rotation, and bimanual horizontal dilation was performed. Forceps were rotated 90° in longitudinal direction afterwards, and another bimanual forceps dilation was carried out in the vertical direction. After removing the forceps tracheostomy tube was inserted into the trachea using the guidewire.
The Ciaglia Blue Rhino single dilator method was performed as reviewed by SP Ambesh (30). After a transverse 20 mm skin incision we identified the anterior tracheal wall by palpation to assess the puncture site. The tracheal dilation was performed by a curved, gradually tapered dilator in a single step, than we inserted the tracheostomy tube via using a guidewire.
Upper airway complex was anatomized by a mortuary technician with maximal care for non-traumatic extraction. Site of insertion and posterior tracheal wall were inspected and recorded by the non-operator expert, then dissection of the posterior wall was carried out. Exact cannula position was checked and ring fracture inspected and palpated to avoid any “hidden” fracture covered by mucosa. The process was completed by photo documentation.
Statistics
Pearson chi-square tests were applied using SigmaStat 3.5 program (Systat Software Inc., San Jose, CA, United states) for statistical evaluation. To calculate the sample size of the study, the frequency of tracheal cartilage injury was the variable of interest. We assumed that a minimum of 20% difference was considered clinically important, and that in combination with our previous results of 9% from earlier experiments were used for the calculations. [13] A type one error of 0.05 and a required (statistical) power of 0.80 were set. A minimum of 150 cadavers were required based on the conditions detailed above.
Results
We carried out PDTs in 150 cadavers (69 female and 81 male) with different types of dilatational techniques in the period of 2015 March 01–2017 February 24. All data is available in Supplementary Material. Standard Griggs technique was applied in 51 cases, modified Griggs technique in 55 cases and Single Dilator technique in 44 cases according to randomization. During autopsy, we found that in four cases the tracheostomy tube was misplaced - not in the trachea but in the surrounding tissues (all done by Single Dilator method). We excluded these results; thus statistical analysis consists of 146 cases.
According to the time elapsed since death we divided the patients into two groups, an early post-mortem (less than 72 h passed since death), and a late post-mortem group (81 vs. 65 subjects). Our preliminary assumption was that cartilage rigidity varies with the time elapsed after death thus there would be an increase in cartilage injury in the group of cadavers in whom PDT was carried out more than 72 h after death (late post-mortem group). Table 1 shows that the frequency of cartilage injury was 53.09% (43/81 cases) and 58.46% (38/65 cases), respectively, hence there was no statistical difference between these two groups (p = 0.630). Figure 1 presents characteristic images of tracheal injuries found during autopsies. Thus for further analysis we summarized all subjects irrespective of the time elapsed from death until PDT was carried out. We also recorded the age of subjects at death and according to this we compared cartilage injury occurrence in subjects younger (34/71) and older than 70 years (31/75). No statistical difference was found between these two groups (p = 0.529), thus cartilage fracture does not depend on the age of the deceased. There was also no statistical difference (p = 0.913) in the cartilage injury occurrence between women (29/67) and men (36/79).

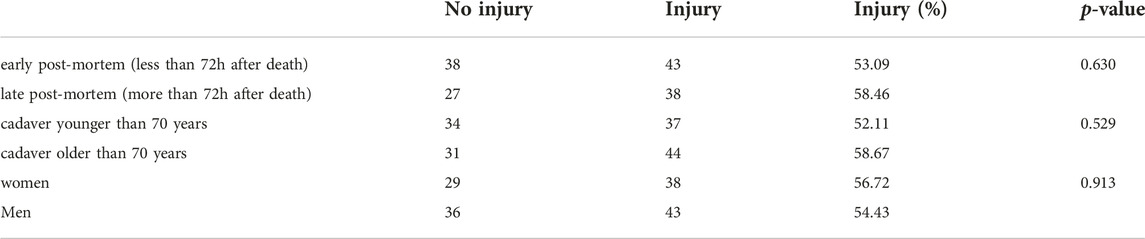

TABLE 1. Relationship between cartilage injury and study variables.
FIGURE 1. Characteristic of tracheal injuries during autopsies (A): Tracheostomy aperture [blue arrow] without fracture (posterior tracheal wall dissected, internal view). (B) “One-ring” fracture [yellow arrow] (posterior tracheal wall dissected, internal view). (C) “Multiple-ring” fracture [black arrow] (anterior view for demonstrational purposes).
As the next step we compared the three techniques applied according to two aspects, whether the occurrence of cartilage injury depends on the dilatational techniques and whether there is any difference in the position of tracheostomy. For the latter we accepted the tracheostomy at “proper position” if the tube was inserted between the 1st and 2nd or between the 2nd and 3rd cartilages according to the standards. Raw data are shown in Table 2. When performing tracheostomy with standard Griggs’ technique, there was no cartilage injury observed in 26 cases, and injured cartilages were detected in 25 cases (injury occurrence: 49.02%), meanwhile 31 tubes were inserted in good position and 20 were malpositioned (malposition occurrence: 39.22%). In case of modified Griggs’ method these results are 32 vs. 23 (41.82%) for injury and 36 vs. 19 (34.55%) for malposition, and 7 vs. 33 (82.50%) and 22 vs. 18 (45.00%), respectively, when using Single Dilator.
TABLE 2. Relationship between cartilage injury or tracheostomy tube position and the method of intervention.
Statistical analysis revealed that the method of intervention was significantly associated with cartilage injury, when comparing either standard Griggs’ with Single Dilator (p = 0.002; OR: 4.903; 95% CI: 1.834–13.105) or modified Griggs’ with Single Dilator (p < 0.001; OR: 6.559; 95% CI: 2.472–17.404) technique. In each case we found that there is an increased risk of cartilage injury when using the Single Dilator technique. However, we could not detect any statistical difference between standard and modified Griggs’ techniques with respect to cartilage injury (p = 0.583; OR: 0.748; 95% CI: 0.347–1.610). We also analyzed the malposition occurrence, but there was no statistically significant difference between the three PDT techniques applied (Griggs vs. modified Griggs: p = 0.767; OR: 0.818; 95% CI: 0.371–1.803; Griggs vs. Single Dilator: p = 0.733; OR: 1.268; 95% CI: 0.548–2.935; and modified Griggs vs. Single Dilator: p = 0.413; OR: 1.550; 95% CI: 0.673–3.572). Statistical data are shown in Table 3.
TABLE 3. Statistical analysis of the methods of intervention according to cartilage injury and tracheostomy tube position.
Discussion
Tracheostomy was traditionally performed by surgeons in the operating room, but thanks to the development of percutaneous dilatational techniques nowadays is a routine procedure done by intensivists in most of the Intensive Care Units. PDT helps shorten overall time of tracheostomy procedures by decreasing the waiting time for operating room and general anesthesia (31–33). Another great review also suggests that PDT is the procedure of choice for tracheostomy because of its reduced procedure time and medical cost (34) There are several good quality prospective randomized studies which confirm the PDT’s superiority against surgical techniques in critically ill patients (35–38). PDT is associated with significantly fewer wound infections and unfavourable scarring, and it may also reduce the risk of bleeding and mortality compared with surgical tracheostomy in critically ill patients according to systematic reviews (39, 40). Bedside percutaneous tracheostomy was experienced as a safe method in a retrospective review of more than 3000 procedures (41). However, in a recent study, there was no statistically significant difference in the one-year mortality of patients undergoing prolonged mechanical ventilation whether receiving tracheostomy or not (42), furthermore there were no significant differences in the intraoperative and postoperative bleeding and in mortality in recent meta-analysis (43).
Although there are several studies, meta-analyses and excellent reviews which compare the different PDT techniques (6,30,44–47), there is still no consensus between physicians on which technique has the lowest major complication rate. Our aim in this study was to compare the two most widely used PDT techniques—namely the Griggs’ and the Single Dilator—and also our previously suggested modification of Griggs’ version (21) in cadavers, in respect of cartilage injury, which is believed to take important part in the development of tracheal stenosis (48, 49).
According to our data, using a single tapered dilator significantly increases the risk of cartilage injury in cadavers compared to both standard and modified Griggs’ methods, in accordance with some previous experts’ observations (30). The single dilator is a round shaped device with permanently increasing diameter which is used with a continous force against the tracheal wall therefore the trachea cartilage could be broken easier in this case. A mild single unidirectional (transverse) tracheal dilation is performed in Griggs method, while performing modified Griggs technique a visualized bidirectional (transverse and longitudinal) intercartilaginous dilation is made which both can reduce the risk of cartilage injuries (50).
We have suggested a modification to the classical Griggs’ method in order to decrease the complications of PDT in our previous study (21). We have found that this modification caused a remarkable decrease in the number of injured tracheal cartilages. One of the main drawbacks of that study was that the procedures were not blinded, i.e., the same investigator performed and evaluated identical procedures. Thus, now we redesigned and reevaluated our previous study using a randomized, blinded approach. Our new data still showed a decreased risk of cartilage injury with this modification; however, this reduction was not statistically significant. Further elevation of the sample size may emphasize the difference. Cartilage fracture was independent of aging, gender and the time elapsed since death. According to statistical analysis the level of intervention was not different between the three groups, however, it is worth mentioning that cannula malposition occurred less commonly in the modified Griggs’ group.
We suggest making a quite wide (50-mm) horizontal skin incision for the procedure. One might say that this increases the risk of major bleeding and makes the procedure longer but at the same time it provides enough space for secure pretracheal surgical blunt preparation until the tracheal wall can be visualized and palpated making critical intervention (i.e. tracheal puncture with partially lost airway) shorter and probably safer. Another important aspect is, that with good visibility bronchoscopy is nearly unnecessary, thus it is easier to avoid the significant rise of PaCO2 and consequent respiratory acidosis which occurs during bronchoscopy even when applying increased tidal volume and large diameter endotracheal tube (51).
The obvious limitation of our study is that PDTs were made in cadavers, which could influence cartilage flexibility, so cadaver’s tracheal cartilages could be more rigid than in case of living tissue. Performing PDT cartilage injury/fracture could be rare in living tissues but the correlation of the number of the cartilage injuries using different methods could be demonstrated on cadavers.Tracheal injuries were more common in our study (81/146 subjects, 55.48%) than what we would expect according to our clinical experience, although it was still less than mentioned in another PDT cadaver study (83%) (52). Even if there was no significant difference in cartilage injury between the two groups defined by the post-mortem time elapsed, there was a higher incidence in the late post-mortem group, which corroborates the presumption that it could influence our data. It is also important to mention that cartilage injury could not only occur during the insertion of the cannula but also during autopsy when it was removed for evaluation, thus it could further increase its incidence.
In conclusion, in cadavers we found that forceps dilatational methods are safer than Single dilator with respect to cartilage injury. Although we did not detect statistical significance, we still suggest the use of bidirectional dilatation with forceps, as cartilage injury and cannula malposition incidence was the lowest in the group where this modification was applied. Prospective study and long-term follow-up of patients undergoing PDTs would be necessary to further confirm its superiority over other methods.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Ethics statement
The studies involving human participants were reviewed and approved by Semmelweis University Regional and Institutional Committee of Science and Research Ethics (117-1/2006 SE-RKEB; 2014.03.17). Written informed consent for participation was not required for this study in accordance with the national legislation and the institutional requirements.
Author contributions
GÉ designed and wrote the research study; FB and GO performed the research; FB and GO and LÉ collected the data; JT analyzed the data; FB and JT wrote the paper. JG and GÉ, and MSZ revised the manuscript. All authors approved the final manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
Authors are grateful to Professor András Matolcsy Gergely Rácz M.D. PhD, János Zalavári and all other contributing members of the 1st Department of Pathology and Experimental Cancer Research of Semmelweis University for supplying cadavers and providing special help during dissections. The critical reading of the manuscript by Professor László Tamás, Associate professor Balázs Hauser and Judit Laki management consultant (Semmelweis University) are acknowledged with many thanks.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.por-journal.com/articles/10.3389/pore.2023.1610934/full#supplementary-material
SUPPLEMENTARY DATA SHEET S1 | The generated datasets.
References
1. Armstrong, PA, McCarthy, MC, and Peoples, JB. Reduced use of resources by early tracheostomy in ventilator-dependent patients with blunt trauma. Surgery (1998) 124(4):763–6. doi:10.1067/msy.1998.91224
2. Brook, AD, Sherman, G, Malen, J, and Kollef, MH. Early versus late tracheostomy in patients who require prolonged mechanical ventilation. Am J Crit Care (2000) 9(5):352–9. doi:10.4037/ajcc2000.9.5.352
3. Kluger, Y, Paul, DB, Lucke, J, Cox, P, Colella, JJ, Townsend, RN, et al. Early tracheostomy in trauma patients. Eur J Emerg Med (1996) 3(2):95–101. doi:10.1097/00063110-199606000-00007
4. Rumbak, MJ, Newton, M, Truncale, T, Schwartz, SW, Adams, JW, and Hazard, PB. A prospective, randomized, study comparing early percutaneous dilational tracheotomy to prolonged translaryngeal intubation (delayed tracheotomy) in critically ill medical patients. Crit Care Med (2004) 32(8):1689–94. doi:10.1097/01.ccm.0000134835.05161.b6
5. Ciaglia, P, Firsching, R, and Syniec, C. Elective percutaneous dilatational tracheostomy. A new simple bedside procedure; preliminary report. Chest (1985) 87(6):715–9. doi:10.1378/chest.87.6.715
6. Rashid, AO, and Islam, S. Percutaneous tracheostomy: A comprehensive review. J Thorac Dis (2017) 9(10):S1128–S38. doi:10.21037/jtd.2017.09.33
7. Zgoda, MA, and Berger, R. Balloon-facilitated percutaneous dilational tracheostomy tube placement: Preliminary report of a novel technique. Chest (2005) 128(5):3688–90. doi:10.1378/chest.128.5.3688
8. Frova, G, and Quintel, M. A new simple method for percutaneous tracheostomy: Controlled rotating dilation. A preliminary report. Intensive Care Med (2002) 28(3):299–303. doi:10.1007/s00134-002-1218-5
9. Griggs, WM, Worthley, LI, Gilligan, JE, Thomas, PD, and Myburg, JA. A simple percutaneous tracheostomy technique. Surg Gynecol Obstet (1990) 170(6):543–5.
10. Fantoni, A, and Ripamonti, D. A non-derivative, non-surgical tracheostomy: The translaryngeal method. Intensive Care Med (1997) 23(4):386–92. doi:10.1007/s001340050345
11. de Kleijn, BJ, Wedman, J, Zijlstra, JG, Dikkers, FG, and van der Laan, B. Short- and long-term complications of surgical and percutaneous dilatation tracheotomies: A large single-centre retrospective cohort study. Eur Arch Otorhinolaryngol (2019) 276(6):1823–8. doi:10.1007/s00405-019-05394-9
13. Jung Kwon, O, Young Suh, G, Pyo Chung, M, Kim, J, Han, J, and Kim, H. Tracheal stenosis depends on the extent of cartilaginous injury in experimental canine model. Exp Lung Res (2003) 29(6):329–38. doi:10.1080/01902140303757
14. Pookamala, S, Thakar, A, Puri, K, Singh, P, Kumar, R, and Sharma, S. Acquired subglottic stenosis: Aetiological profile and treatment results. The J Laryngol Otology (2014) 128(7):641–8. doi:10.1017/S0022215114000966
15. Zouk, AN, and Batra, H. Managing complications of percutaneous tracheostomy and gastrostomy. J Thorac Dis (2021) 13(8):5314–30. doi:10.21037/jtd-19-3716
16. Law, R, Carney, A, and Manara, A. Long-term outcome after percutaneous dilational tracheostomy: Endoscopic and spirometry findings. Anaesthesia (1997) 52(1):51–6. doi:10.1111/j.1365-2044.1997.013-az013.x
17. Zias, N, Chroneou, A, Tabba, MK, Gonzalez, AV, Gray, AW, Lamb, CR, et al. Post tracheostomy and post intubation tracheal stenosis: Report of 31 cases and review of the literature. BMC Pulm Med (2008) 8(1):18–9. doi:10.1186/1471-2466-8-18
18. Ambesh, SP. Principles and practice of percutaneous tracheostomy. New Delhi (India): Jaypee Brothers Publishers (2010).
19. van Heurn, LW, Theunissen, PH, Ramsay, G, and Brink, PR. Pathologic changes of the trachea after percutaneous dilatational tracheotomy. Chest (1996) 109(6):1466–9. doi:10.1378/chest.109.6.1466
20. Marchioni, A, Tonelli, R, Andreani, A, Cappiello, GF, Fermi, M, Trentacosti, F, et al. Molecular mechanisms and physiological changes behind benign tracheal and subglottic stenosis in adults. Int J Mol Sci (2022) 23(5):2421. doi:10.3390/ijms23052421
21. Elő, G, Zubek, L, Hargitai, Z, Iványi, Z, Branovics, J, and Gál, J. Prevention of tracheal cartilage injury with modified Griggs technique during percutaneous tracheostomy - randomized controlled cadaver study. Interv Med Appl Sci (2012) 4(4):206–9. doi:10.1556/IMAS.4.2012.4.5
22. Bloss, RS, and Ward, RE. Survival after tracheoinnominate artery fistula. Am J Surg (1980) 139(2):251–3. doi:10.1016/0002-9610(80)90266-4
23. Khanafer, A, Hellstern, V, Meißner, H, Harmening, C, Schneider, K, and Henkes, H. Tracheoinnominate fistula: Acute bleeding and hypovolemic shock due to a trachea-innominate artery fistula after long-term tracheostomy, treated with a stent-graft. CVIR Endovasc (2021) 4(1):30. doi:10.1186/s42155-021-00216-8
24. Zouk, AN, and Batra, H. Managing complications of percutaneous tracheostomy and gastrostomy. J Thorac Dis (2021) 13(8):5314–30. doi:10.21037/jtd-19-3716
25. Fernandez-Bussy, S, Mahajan, B, Folch, E, Caviedes, I, Guerrero, J, and Majid, A. Tracheostomy tube placement: Early and late complications. J Bronchology Interv Pulmonol (2015) 22(4):357–64. doi:10.1097/LBR.0000000000000177
26. Cipriano, A, Mao, ML, Hon, HH, Vazquez, D, Stawicki, SP, Sharpe, RP, et al. An overview of complications associated with open and percutaneous tracheostomy procedures. Int J Crit Illn Inj Sci (2015) 5(3):179–88. doi:10.4103/2229-5151.164994
27. Feller-Kopman, D. Acute complications of artificial airways. Clin Chest Med (2003) 24(3):445–55. doi:10.1016/s0272-5231(03)00047-9
28. Watters, M, Thorne, G, Cox, C, and Monk, C. Tracheal trauma from percutaneous tracheostomy using the Griggs method. Anaesthesia (2002) 57(3):249–52. doi:10.1046/j.0003-2409.2001.02452.x
29. Paran, H, Butnaru, G, Hass, I, Afanasyv, A, and Gutman, M. Evaluation of a modified percutaneous tracheostomy technique without bronchoscopic guidance. Chest (2004) 126(3):868–71. doi:10.1378/chest.126.3.868
30. Ambesh, SP, Pandey, CK, Srivastava, S, Agarwal, A, and Singh, DK. Percutaneous tracheostomy with single dilatation technique: A prospective, randomized comparison of Ciaglia blue rhino versus Griggs' guidewire dilating forceps. Anesth Analg (2002) 95(6):1739–45. t. doi:10.1097/00000539-200212000-00050
31. Tai, HP, Lee, DL, Chen, CF, and Huang, YT. The effect of tracheostomy delay time on outcome of patients with prolonged mechanical ventilation: A STROBE-compliant retrospective cohort study. Medicine (Baltimore) (2019) 98(35):e16939. doi:10.1097/MD.0000000000016939
32. Pauliny, M, Christova, E, Mackova, J, and Liska, M. Percutaneous dilation tracheostomy versus surgical tracheostomy in critically ill patients. Bratisl Lek Listy (2012) 113(7):409–11. doi:10.4149/bll_2012_092
33. Khaja, M, Haider, A, Alapati, A, Qureshi, ZA, and Yapor, L. Percutaneous tracheostomy: A bedside procedure. Cureus (2022) 14(4):e24083. doi:10.7759/cureus.24083
34. Cheung, NH, and Napolitano, LM. Tracheostomy: Epidemiology, indications, timing, technique, and outcomes. Respir Care (2014) 59(6):895–915. doi:10.4187/respcare.02971
35. Heikkinen, M, Aarnio, P, and Hannukainen, J. Percutaneous dilational tracheostomy or conventional surgical tracheostomy? Crit Care Med (2000) 28(5):1399–402. doi:10.1097/00003246-200005000-00023
36. Kaylie, DM, Andersen, PE, and Wax, MK. An analysis of time and staff utilization for open versus percutaneous tracheostomies. Otolaryngol Head Neck Surg (2003) 128(1):109–14. doi:10.1067/mhn.2003.18
37. Melloni, G, Muttini, S, Gallioli, G, Carretta, A, Cozzi, S, Gemma, M, et al. Surgical tracheostomy versus percutaneous dilatational tracheostomy. A prospective-randomized study with long-term follow-up. J Cardiovasc Surg (Torino) (2002) 43(1):113–21.
38. Youssef, TF, Ahmed, MR, and Saber, A. Percutaneous dilatational versus conventional surgical tracheostomy in intensive care patients. N Am J Med Sci (2011) 3(11):508–12. doi:10.4297/najms.2011.3508
39. Brass, P, Hellmich, M, Ladra, A, Ladra, J, and Wrzosek, A. Percutaneous techniques versus surgical techniques for tracheostomy. Cochrane Database Syst Rev (2016) 7(7):Cd008045. doi:10.1002/14651858.CD008045.pub2
40. Delaney, A, Bagshaw, SM, and Nalos, M. Percutaneous dilatational tracheostomy versus surgical tracheostomy in critically ill patients: A systematic review and meta-analysis. Crit Care (2006) 10(2):R55. doi:10.1186/cc4887
41. Dennis, BM, Eckert, MJ, Gunter, OL, Morris, JA, and May, AK. Safety of bedside percutaneous tracheostomy in the critically ill: Evaluation of more than 3, 000 procedures. J Am Coll Surg (2013) 216(4):858–65. doi:10.1016/j.jamcollsurg.2012.12.017
42. Cinotti, R, Voicu, S, Jaber, S, Chousterman, B, Paugam-Burtz, C, Oueslati, H, et al. Tracheostomy and long-term mortality in ICU patients undergoing prolonged mechanical ventilation. PLoS One (2019) 14(10):e0220399. doi:10.1371/journal.pone.0220399
43. Johnson-Obaseki, S, Veljkovic, A, and Javidnia, H. Complication rates of open surgical versus percutaneous tracheostomy in critically ill patients. Laryngoscope (2016) 126(11):2459–67. doi:10.1002/lary.26019
44. Anon, JM, Escuela, MP, Gomez, V, Moreno, A, Lopez, J, Diaz, R, et al. Percutaneous tracheostomy: Ciaglia blue rhino versus Griggs' guide wire dilating forceps. A prospective randomized trial. Acta Anaesthesiol Scand (2004) 48(4):451–6. doi:10.1111/j.1399-6576.2004.0313.x
45. Fikkers, BG, Staatsen, M, van den Hoogen, FJ, and van der Hoeven, JG. Early and late outcome after single step dilatational tracheostomy versus the guide wire dilating forceps technique: A prospective randomized clinical trial. Intensive Care Med (2011) 37(7):1103–9. doi:10.1007/s00134-011-2222-4
46. Cabrini, L, Landoni, G, Greco, M, Costagliola, R, Monti, G, Colombo, S, et al. Single dilator vs. guide wire dilating forceps tracheostomy: A meta-analysis of randomised trials. Acta Anaesthesiol Scand (2014) 58(2):135–42. doi:10.1111/aas.12213
47. Fikkers, BG, Staatsen, M, Lardenoije, SG, van den Hoogen, FJ, and van der Hoeven, JG. Comparison of two percutaneous tracheostomy techniques, guide wire dilating forceps and Ciaglia blue rhino: A sequential cohort study. Crit Care (2004) 8(5):R299–305. doi:10.1186/cc2907
48. Norwood, S, Vallina, VL, Short, K, Saigusa, M, Fernandez, LG, and McLarty, JW. Incidence of tracheal stenosis and other late complications after percutaneous tracheostomy. Ann Surg (2000) 232(2):233–41. doi:10.1097/00000658-200008000-00014
49. Steele, AP, Evans, HW, Afaq, MA, Robson, JM, Dourado, J, Tayar, R, et al. Long-term follow-up of Griggs percutaneous tracheostomy with spiral CT and questionnaire. Chest (2000) 117(5):1430–3. doi:10.1378/chest.117.5.1430
50. Ronen, O, Rosin, I, Taitelman, UZ, and Altman, E. Comparison of Ciaglia and Griggs percutaneous tracheostomy techniques - a biomechanical animal study. Indian J Crit Care Med (2019) 23(6):247–50. doi:10.5005/jp-journals-10071-23174
51. Karagiannidis, C, Merten, ML, Heunks, L, Strassmann, SE, Schafer, S, Magnet, F, et al. Respiratory acidosis during bronchoscopy-guided percutaneous dilatational tracheostomy: Impact of ventilator settings and endotracheal tube size. BMC Anesthesiol (2019) 19(1):147. doi:10.1186/s12871-019-0824-5
Keywords: percutaneous tracheostomy, tracheal cartilage injury, Tracheal stenosis, Griggs, Ciaglia Blue Rhino
Citation: Bódis F, Orosz G, Tóth JT, Szabó M, Élő LG, Gál J and Élő G (2023) Percutaneous tracheostomy: Comparison of three different methods with respect to tracheal cartilage injury in cadavers—Randomized controlled study. Pathol. Oncol. Res. 29:1610934. doi: 10.3389/pore.2023.1610934
Received: 08 November 2022; Accepted: 09 January 2023;
Published: 19 January 2023.
