Hyunjin Park1,2†
Yangkyu Lee1,3†
Kiryang Lee1,4Hyejung Lee1Jeong Eun Yoo5Soomin Ahn6
Young Nyun Park5*
Haeryoung Kim1,4*- 1Department of Pathology, Seoul National University College of Medicine, Seoul, Korea
- 2Department of Pathology, Gangnam Severance Hospital, Yonsei University College of Medicine, Seoul, Korea
- 3Department of Pathology, Seoul National University Bundang Hospital, Seongnam, Korea
- 4Department of Pathology, Seoul National University Hospital, Seoul, Korea
- 5Department of Pathology, Brain Korea 21 PLUS Project for Medical Science, Yonsei University College of Medicine, Seoul, Korea
- 6Department of Pathology and Translational Genomics, Samsung Medical Center, Sungkyunkwan University School of Medicine, Seoul, Korea
Background/Aims: Yes-associated protein (YAP) and transcriptional co-activator with PDZ-binding motif (TAZ) activation has been implicated in hepatocarcinogenesis and hepatic progenitor cell differentiation, and hypoxia has been shown to induce nuclear translocation of YAP in cancer cells. Here, we aimed to investigate the relationship between hypoxia, YAP and TAZ expression and stemness-related marker expression in human hepatocellular carcinomas (HCCs) and its clinical implications.
Methods: Immunohistochemical stains were performed on tissue microarrays from 305 surgically resected HCCs, and the expression status of YAP and TAZ were correlated with CAIX, stemness markers (K19, EpCAM) and epithelial-mesenchymal transition (EMT)-related markers (uPAR, ezrin). The clinicopathological significance of YAP/TAZ expression was analyzed with relation to CAIX expression status.
Results: YAP and TAZ expression were seen in 13.4 and 4.3% of HCCs, respectively. YAP/TAZ-positive HCCs frequently demonstrated higher serum AFP levels, microvascular invasion, advanced tumor stage, increased proliferative activity and expression of stemness- and EMT-related markers, CAIX, p53 and Smad2/3 (p < 0.05, all). Interestingly, YAP/TAZ-positivity was associated with microvascular invasion, higher serum AFP levels, stemness and EMT-related marker expression only in tumors expressing CAIX (p < 0.05, all), while these associations were not seen in CAIX-negative HCCs.
Conclusions: YAP/TAZ expression is associated with vascular invasion, stemness and EMT in HCCs with hypoxia marker expression. The effect of Hippo signaling pathway deregulation in HCC may depend on the presence or absence of a hypoxic microenvironment, and hypoxia marker expression status should be taken into account when considering the use of YAP/TAZ as markers of aggressive biologic behavior in HCC.
Introduction
Hepatocellular carcinoma (HCC) is the sixth most common malignancy worldwide and the fourth leading cause of cancer-related deaths. A subset of HCCs (5–20%) have been demonstrated to express markers associated with “stemness,” including keratin 19 (K19), epithelial cell adhesion molecule (EpCAM), CD133, CD117/c-kit and SALL4, and these HCCs have been associated with aggressive biological behavior and poor survival [1]. The molecular features of stemness-related marker-expressing HCCs are still not well understood – so far, this group of HCCs has been placed in the G1, S2 and proliferation class molecular subgroups, and TP53 mutations, transforming growth factor (TGF)-β and Notch signaling pathways have been implicated in these tumors [2–4]. Even though the prognostic relevance of stemness-related marker expression has been increasingly recognized over the recent years, the lack of therapeutic options for this particular subset of HCCs is still a point of concern.
The Hippo pathway controls tissue homeostasis, including organ size, cell proliferation and apoptosis [5, 6]. The oncoproteins Yes-associated protein (YAP) and transcriptional co-activator with PDZ-binding motif (TAZ) are downstream components of this pathway, and deregulation of the Hippo pathway with activation of YAP and TAZ has been implicated in carcinogenesis, including HCC development [7, 8]. For example, sav1 knockout mice have been shown to develop HCC through the activation of YAP [9]. Activated YAP has been associated with aggressive behavior of various malignant neoplasms, including cell proliferation, stemness, epithelial-mesenchymal transition (EMT) and chemoresistance [10–14]. YAP protein expression has been demonstrated in stemness-marker expressing HCCs and in combined hepatocellular-cholangiocarcinomas, both of which have been postulated to show features of hepatic progenitor cell differentiation [11, 15].
Hypoxia has been associated with aggressive tumor behavior [16]. HCC is no exception; the rapid growth and the relative lack of blood supply results in a hypoxic microenvironment, and HCCs adapt to this unfavorable condition by expressing hypoxia-inducible factors, such as HIF1α and carbonic anhydrase-IX (CAIX) [17, 18]. Associations between CAIX expression, stemness-related marker expression and aggressive clinicopathological features have been seen in HCCs [19]. In addition, hypoxia has been demonstrated to induce YAP nuclear translocation in cancer cells [20]. Therefore, we sought out to investigate the relationship between hypoxia, YAP/TAZ expression and stemness-related marker expression and the clinicopathological implications of YAP/TAZ expression in human HCCs.
Materials and Methods
Case Selection
Three hundred and five HCCs that were surgically resected between 2003 and 2012 at Seoul National University Bundang Hospital (SNUBH), Seongnam, Republic of Korea were evaluated in this study. This study was approved by the Institutional Review Board of SNUBH (B-1704-391-301), and informed consent was waived due to the retrospective nature of the study. The clinicopathological information was prospectively recorded by reviewing the electronic medical records, including patient age, sex, underlying etiology, serum alpha-fetoprotein (AFP) levels, preoperative locoregional treatment (including radiofrequency ablation, transarterial chemo/radioembolization), tumor size, gross type [21], multiplicity, histologic grade (Edmonson-Steiner), major vascular and microvascular invasion status, and pathological T and N stages according to American Joint Committee on Cancer (AJCC) 8th edition. Multiplicity was defined as 2 or more tumors, and included intrahepatic metastases and multicentric occurrences. Major vascular invasion was defined as invasion of the main portal vein and first-order branches, the right, middle and left hepatic veins, or the right or left hepatic artery. Microvascular invasion was defined as invasion of smaller caliber vessels by tumor cells; the microvessels were located in the tumor capsule or in the peritumoral non-neoplastic liver, and were not portal vein, hepatic veins or hepatic arteries [22]. The presence of intratumoral fibrous stroma was recorded: fibrous stroma exceeding 10% of the tumor area was regarded as “present.” For the background liver, the fibrosis stage was recorded according to the METAVIR system.
We defined disease-free survival as the interval from surgical treatment to the date of disease recurrence (local recurrence or intrahepatic/distant metastasis). Overall survival was defined as the interval between surgical treatment and date of death from HCC or other causes.
Tissue Microarray and Immunohistochemistry
Tissue microarray cores of 2 mm-diameter were obtained from the 305 SNUBH HCCs (SuperBioChips Laboratory, Seoul, Korea). One to three cores from the HCCs and matched non-neoplastic liver were evaluated in this study. Immunohistochemical stains for YAP, TAZ, K19, EpCAM, CAIX, p53, ezrin, urokinase-type plasminogen activator receptor (uPAR), smad2/3 and Ki-67 were performed on 4 μm-thick tissue microarray sections manually or by using the Ventana BenchMark GX automated platform (Ventana Medical Systems). The details for each antibody are summarized in Table 1.
TABLE 1. List of antibodies used in this study.
The presence of cytoplasmic expression in >5% of the tumor cells was regarded as positive for K19, uPAR and smad2/3 expression. EpCAM, CAIX and ezrin were expressed in the tumor cell membranes. Although YAP and TAZ were expressed in both the cytoplasm and nuclei, only unequivocal nuclear or nucleocytoplasmic staining for YAP and TAZ were interpreted as positive. Cytoplasmic YAP/TAZ expression without the nuclear stain was not counted as positive regardless of the intensity. Strong nuclear p53 expression in >5% of tumor cells was interpreted as p53 overexpression. The Ki-67 labeling index was calculated as the percentage of Ki-67-stained tumor cell nuclei over the total number of nuclei in a ×400 magnification field, with the use of ImageJ analysis software (downloaded from imagej.nih.gov/ij, version 1.47).
Statistical Analysis
Statistical analysis was performed using STATA version 14.0 (StataCorp, College Station, TX, United States). The student t-test was used for comparing continuous variables, and the chi-square and Fisher-exact tests were used for categorical variables. Survival analysis was performed by the Kaplan-Meier method with the log-rank test. Statistical significance was defined as a p-value of < 0.05.
Results
YAP/TAZ Expression Status in HCCs and Non-Neoplastic Livers
In non-neoplastic livers, YAP and TAZ were both expressed in the nuclei and cytoplasm of bile ducts and ductular reactions. Hepatocytes were mostly negative for YAP and TAZ; however, occasional periportal or periseptal hepatocytes demonstrated weak nucleocytoplasmic YAP expression. In addition, YAP and TAZ were expressed in endothelial cells. The presence of nuclear stain was regarded as positive for both YAP and TAZ.
YAP and TAZ expression were seen in 41/305 (13.4%) and 13/305 (4.3%) HCCs, respectively (Figure 1). There was a positive correlation between YAP and TAZ expression status (p < 0.001) and YAP and TAZ expression was co-localized in the tumor cells for the 13 TAZ-positive HCC cases. There was no significant difference in YAP or TAZ expression frequency according to the HCC etiology. The complete set of immunohistochemical stain data for all ten antibodies was obtained for 255 cases due to tissue core loss, and therefore, 255 cases were enrolled for subsequent analysis. Of the 255 HCCs, YAP and TAZ expression were seen in 34 (13.3%) and 11 (4.3%) cases, and the positive correlation between YAP and TAZ expression was still observed (p < 0.001).
FIGURE 1. Immunohistochemical stain results. A representative YAP/TAZ-positive HCC showing abundant intratumoral fibrous stroma (A hematoxylin-eosin stain, ×100; B,C YAP; D,E TAZ) showing expression of CAIX (F), K19 (G), EpCAM (H), ezrin (I), uPAR (J), p53 (K) and smad2/3 (L) (B,D,F–L ×200; C,E ×400).
YAP/TAZ Expression is Associated with Aggressive Clinicopathological Features, Hypoxia and Stemness
As a whole, YAP positivity in HCC was associated with significantly more frequent microvascular invasion (p = 0.015), a tendency for more frequent portal vein invasion (p = 0.059) and significantly more frequent intratumoral fibrous stroma (p = 0.035). The proliferation rates were significantly higher in YAP-positive HCCs [mitotic index (p = 0.020) and Ki-67 labeling index (p < 0.001)]. YAP-positive HCCs demonstrated more frequent K19 (p < 0.001) and EpCAM (p = 0.001) expression, and more frequent CAIX expression (p < 0.001). Serum AFP levels were higher in YAP-positive HCCs (p = 0.065), although not statistically significant.
TAZ expression was also associated with more frequent intratumoral fibrous stroma (p = 0.046), and significantly increased proliferative activity [mitotic index (p = 0.011 and Ki-67 labeling index (p < 0.001)]. Similarly to YAP-positive HCCs, TAZ-positive HCCs demonstrated more frequent K19 (p = 0.007) and CAIX (p = 0.034) expression. EpCAM expression was also more frequent in TAZ-positive HCCs, although not statistically significant (p = 0.057).
As there was a significant positive correlation between YAP and TAZ expression status and the clinicopathological features were similar for YAP-positive and TAZ-positive HCCs, we continued our analysis by grouping HCCs expressing YAP and/or TAZ, resulting in 37 (14.5%) YAP/TAZ-positive HCCs and 218 (85.5%) YAP/TAZ-negative HCCs (Table 2). After grouping, YAP/TAZ-positive HCCs were significantly associated with higher serum AFP levels (p = 0.024), more frequent microvascular invasion (p = 0.011), higher T stage (p = 0.017) and lymph node metastasis (p = 0.003). YAP/TAZ-positive HCCs were significantly associated with frequent stemness-related marker expression (K19, p < 0.001; EpCAM, p = 0.002) and frequent CAIX expression (p < 0.001). YAP/TAZ-expression was also associated with more frequent expression of EMT-related markers (uPAR: p = 0.001, ezrin: p = 0.001). In addition, p53 expression was significantly more frequent in YAP/TAZ-positive HCCs (p < 0.001), and smad2/3 expression was also increased in YAP/TAZ-positive HCCs (p < 0.001), suggesting an association between YAP/TAZ positivity and the TGF-β signaling pathway.

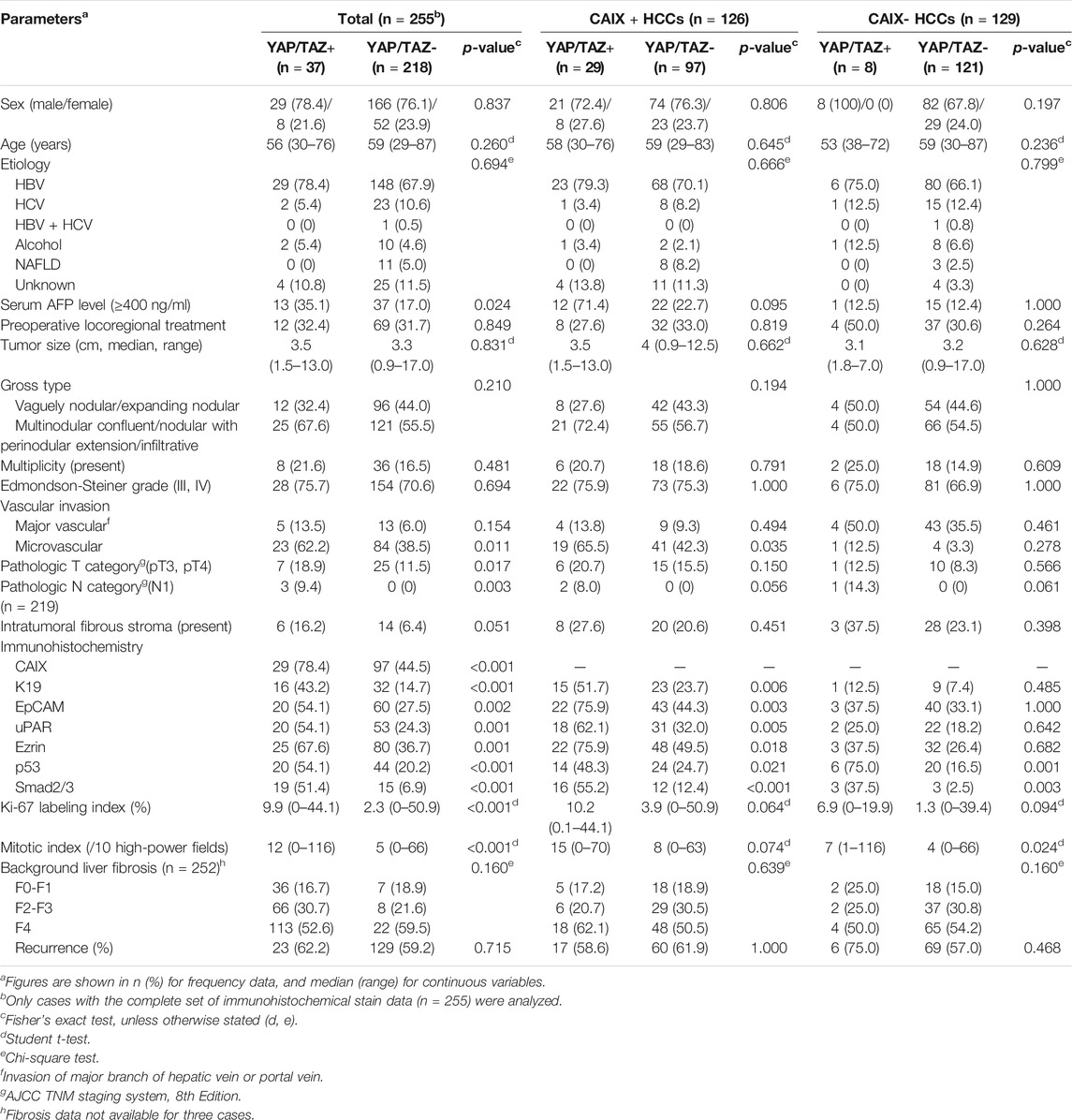

TABLE 2. Summary of the clinicopathological and immunohistochemical characteristics of HCCs according to YAP/TAZ and CAIX expression status.
To evaluate the distribution of YAP, TAZ and CAIX expression in HCCs in more detail, we selected 10 HCCs from the same tissue microarray cohort that expressed both YAP and TAZ, and stained these tumors for YAP, TAZ and CAIX on whole tissue sections (Figure 2). YAP expression was diffuse homogeneous in 2 cases, while the remaining 8 cases showed patchy expression. TAZ expression was focal in all 10 cases, and frequently localized at the periphery of the tumor cell nests. Although TAZ expression was focal, they were co-localized with YAP; TAZ-positive cells were also YAP-positive in the 10 whole tissue sections tested. CAIX expression was observed in 8 of the 10 YAP/TAZ-positive HCCs, and CAIX staining distribution was patchy in all 8 cases. CAIX expression was co-localized with YAP/TAZ expression in 7 out of the 8 CAIX-positive cases; however, in one case, CAIX expression was not co-localized with YAP or TAZ expression.
FIGURE 2. The staining distribution of YAP, TAZ and CAIX in a whole tissue section of a hepatocellular carcinoma (upper row). YAP expression was strong in intensity and easily recognized at low power (left). TAZ expression was focal, but co-localized with YAP expression (middle). CAIX expression was strong in intensity and patchy, and were co-localized with YAP/TAZ expression in most cases (right). The boxed areas in the upper row are demonstrated at ×200 magnification in the lower row. The inset in the lower row is a ×400 magnification picture demonstrating the nuclear staining for TAZ.
Clinicopathological Significance of YAP/TAZ Expression in HCCs According to Hypoxia Marker Status
In order to explore the relationship between hypoxia and YAP/TAZ in HCC, CAIX-positive and CAIX-negative HCCs were analyzed separately. The results are summarized in Table 2 and Figure 3. Interestingly, for CAIX-negative HCCs, the expression status of YAP/TAZ had no associations with the expression status of stemness-related or EMT-related markers. On the other hand, for CAIX-positive HCCs, YAP/TAZ expression was significantly associated with K19 (p = 0.006), EpCAM (p = 0.003), uPAR (p = 0.005) and ezrin (p = 0.018) expression.
FIGURE 3. Summary of the characteristics of YAP/TAZ-positive HCCs with relation to hypoxia marker expression status (hematoxylin-eosin stain and CAIX, K19, EpCAM, uPAR and ezrin immunohistochemistry, ×200).
Smad2/3 and p53 expression status was correlated with YAP/TAZ status for both groups, regardless of hypoxia marker status. Similarly, mitotic indices were higher in YAP/TAZ-positive HCCs regardless of CAIX status, although statistically significant only in the CAIX-negative group (p = 0.024). Ki-67 labeling indices were higher in YAP/TAZ-positive HCCs regardless of CAIX status, but statistical significance was not reached (CAIX + HCC: p = 0.064, CAIX - HCC: p = 0.094).
As for the clinicopathological features, more frequent microvascular invasion (p = 0.035) was observed in YAP/TAZ-positive HCCs, along with tendencies for higher serum AFP levels (p = 0.068) and frequent lymph node metastasis (p = 0.056), in the CAIX-positive group. There were no differences in any of the clinicopathological features according to YAP/TAZ expression status in the CAIX-negative group, except for a tendency for more frequent lymph node metastasis (p = 0.061). No significant difference in patient survival (overall or disease-free survival) according to YAP or TAZ expression status was demonstrated, regardless of hypoxia status.
Discussion
In this study, we demonstrate that although the expression of YAP/TAZ in HCCs is associated with “stemness,” EMT and aggressive clinicopathological features as previously reported, this relationship is seen only in HCCs with hypoxia marker expression. The relationship between tumor hypoxia, YAP/TAZ and stemness is still not well understood. Hypoxia is an important condition for the tumor microenvironment, as it can induce cancer growth, metastasis, angiogenesis, EMT and chemoresistance [18]. Wei et al. demonstrated in their in vitro and human tissue study of pancreatic cancer that hypoxia deactivated the Hippo pathway, induced the nuclear translocation of YAP and promoted the activation of Snail transcription in the ductal adenocarcinoma cell lines [20]. Interestingly, in an in vitro study by Yan et al., hypoxic conditions reduced the expression of the activated form of YAP, while TAZ was induced by hypoxia, suggesting that YAP and TAZ were differentially regulated by hypoxic conditions [23]. In this study, we did not find differences between YAP and TAZ protein expression status when CAIX-positive and CAIX-negative HCCs were analyzed separately. Nevertheless, it is interesting that the expression of YAP and/or TAZ in HCCs was associated with features of aggressive behavior, stemness and EMT only in the presence of CAIX expression, suggesting that the action of YAP/TAZ may be regulated by the hypoxic microenvironment in HCCs.
Another interesting finding in our study is the positive correlation between YAP/TAZ expression, the presence of intratumoral fibrous stroma and the expression of stemness-related markers. YAP expression has previously been demonstrated in a substantial proportion of K19+/EpCAM + HCCs and combined hepatocellular-cholangiocarcinomas [11, 15], and it was therefore suggested that the Hippo signaling pathway may be involved in the acquisition of stemness features of HCCs and combined hepatocellular-cholangiocarcinomas [15]. Notably, TGFβ has been recently shown to interact with Hippo signaling pathways to stimulate regenerating hepatocytes to undergo an EMT-like response [24]. In addition, TGFβ signaling pathway upregulation has been demonstrated in HCCs with abundant fibrous stroma, such as scirrhous HCC; these tumors are frequently associated with stemness-related marker expression [25]. We observed a positive correlation between YAP/TAZ and smad2/3 expression in both CAIX-positive and CAIX-negative HCCs, suggesting that, regardless of hypoxia status, TGFβ signaling may play an important role in the fibrogenesis of HCCs by interacting with the Hippo signaling pathway.
Despite the associations with clinicopathological features of aggressive behavior, the presence of YAP/TAZ expression did not appear to have prognostic significance in our study, even on separately analyzing the CAIX-positive and negative HCCs. There have been discrepancies regarding the prognostic value of YAP and TAZ in the literature, and differences in the interpretation methods (nuclear, cytoplasmic or nucleocytoplasmic) for YAP and TAZ expression has been suggested to be a reason for this discrepancy [11, 14, 26–28]. We interpreted only nuclear staining as positive for YAP and TAZ as reported by Van Haele et al. [11].
From the therapeutic point of view, several small molecule inhibitors targeting the Hippo signaling pathway have been found to be effective in treating various malignancies. For example, dasatinib, which inhibits the nuclear localization of the YAP/TAZ complex, and verteporfin, which disrupts the formation of the YAP-TEAD complex, are currently used in clinical trials for chronic myeloid leukemia and metastatic breast cancer, respectively [29]. Verteporfin has also been demonstrated to suppress the early stages of hepatocarcinogenesis [30]. As we found that the biological behavior of YAP/TAZ-expressing HCCs may depend on the expression status of CAIX, we could carefully suggest that CAIX could potentially be used as a marker of response to drugs targeting the Hippo pathway in HCCs. However, this would need validation with functional studies and also large scale tissue-based studies in independent patient cohorts.
In conclusion, YAP and TAZ expression in HCC are associated with aggressive clinicopathological features, stemness and EMT, and this relationship is seen in HCCs with hypoxia marker expression. This suggests that the effect of Hippo signaling pathway deregulation in HCC may depend on the presence or absence of a hypoxic microenvironment, and that hypoxia marker expression status should be taken into account when considering the use of YAP/TAZ as markers of aggressive biologic behavior in HCC.
Data Availability Statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics Statement
The studies involving human participants were reviewed and approved by the Institutional Review Board of Seoul National University Bundang Hospital (B-1704-391-301). Written informed consent for participation was not required for this study in accordance with the national legislation and the institutional requirements.
Author Contributions
Guarantor of the article: HK had full access to all of the data in the study and guaranteed the integrity of the data and the accuracy of the data analysis. Study concept and design: HK, YP, HP, KL. Acquisition, analysis and interpretation data: HP, YL, KL, HL, JY, SA, HK, YP. Drafting of the manuscript: HP, YL, HK. Critical revision of the manuscript for important intellectual content: HK, YP. Fund acquisition: HK, YP. All authors have approved the final draft of the manuscript.
Funding
This study was funded by Research Resettlement Fund for the new faculty of Seoul National University (800-20170070), the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2016R1D1A1A09919042), and the NRF grant funded by the Korea government (MSIT) (NRF-2019R1A2C2010056) (to HK); the Basic Science Research Program through the NRF funded by the Ministry of Science, ICT & Future Planning (NRF-2020R1A2B5B01001646), the Bio & Medical Technology Development Program of the NRF and funded by the Korean government (MSIP and MOHW) (NRF-2017M3A9B6061512, NRF-2016M3A9D5A01952416) (to YP).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Abbreviations
HBV, hepatitis B virus; HCV, hepatitis C virus; NAFLD, non-alcoholic fatty liver disease; AFP, alpha-fetoprotein; CAIX, carbonic anhydrase-IX; K19, keratin 19; EpCAM, epithelial cell adhesion molecule; uPAR, urokinase-type plasminogen activator receptor.
References
1. Kim, H, Choi, GH, Na, DC, Ahn, EY, Kim, GI, Lee, JE, et al. Human hepatocellular carcinomas with “Stemness”-related marker expression: keratin 19 expression and a poor prognosis. Hepatology. (2011) 54(5):1707–17. doi:10.1002/hep.24559
2. Boyault, S, Rickman, DS, de Reynies, A, Balabaud, C, Rebouissou, S, Jeannot, E, et al. Transcriptome classification of HCC is related to gene alterations and to new therapeutic targets. Hepatology. (2007) 45(1):42–52. doi:10.1002/hep.21467
3. Calderaro, J, Couchy, G, Imbeaud, S, Amaddeo, G, Letouze, E, Blanc, JF, et al. Histological subtypes of hepatocellular carcinoma are related to gene mutations and molecular tumour classification. J Hepatol. (2017) 67(4):727–38. doi:10.1016/j.jhep.2017.05.014
4. Hoshida, Y, Nijman, SM, Kobayashi, M, Chan, JA, Brunet, JP, Chiang, DY, et al. Integrative transcriptome analysis reveals common molecular subclasses of human hepatocellular carcinoma. Cancer Res. (2009) 69(18):7385–92. doi:10.1158/0008-5472.CAN-09-1089
5. Zhao, B, Lei, QY, and Guan, KL. The Hippo-YAP pathway: new connections between regulation of organ size and cancer. Curr Opin Cell Biol. (2012) 20(6):638–46. doi:10.1016/j.ceb.2008.10.001
6. Mo, JS, Yu, FX, Gong, R, Brown, JH, and Guan, KL. Regulation of the Hippo-YAP pathway by protease-activated receptors (PARs). Genes Dev. (2012) 26(19):2138–43. doi:10.1101/gad.197582.112
7. Johnson, R, and Halder, G. The two faces of Hippo: targeting the Hippo pathway for regenerative medicine and cancer treatment. Nat Rev Drug Discov. (2014) 13(1):63–79. doi:10.1038/nrd4161
8. Yu, FX, Zhao, B, and Guan, KL. Hippo pathway in organ size control, tissue homeostasis, and cancer. Cell. (2015) 163(4):811–28. doi:10.1016/j.cell.2015.10.044
9. Zhou, D, Conrad, C, Xia, F, Park, JS, Payer, B, Yin, Y, et al. Mst1 and Mst2 maintain hepatocyte quiescence and suppress hepatocellular carcinoma development through inactivation of the Yap1 oncogene. Cancer Cell. (2009) 16(5):425–38. doi:10.1016/j.ccr.2009.09.026
10. Kang, W, Tong, JH, Chan, AW, Lee, TL, Lung, RW, Leung, PP, et al. Yes-associated protein 1 exhibits oncogenic property in gastric cancer and its nuclear accumulation associates with poor prognosis. Clin Cancer.(2011) Res. 17(8):2130–9. doi:10.1158/1078-0432.CCR-10-2467
11. Van Haele, M, Moya, IM, Karaman, R, Rens, G, Snoeck, J, Govaere, O, et al. YAP and TAZ heterogeneity in primary liver cancer: an analysis of its prognostic and diagnostic role. Int J Mol Sci. (2019) 20(3):638. doi:10.3390/ijms20030638
12. Wang, L, Shi, S, Guo, Z, Zhang, X, Han, S, Yang, A, et al. Overexpression of YAP and TAZ is an independent predictor of prognosis in colorectal cancer and related to the proliferation and metastasis of colon cancer cells. PLoS One. (2013) 8(6):e65539. doi:10.1371/journal.pone.0065539
13. Wang, Y, Dong, Q, Zhang, Q, Li, Z, Wang, E, and Qiu, X. Overexpression of yes-associated protein contributes to progression and poor prognosis of non-small-cell lung cancer. Cancer Sci. (2010) 101(5):1279–85. doi:10.1111/j.1349-7006.2010.01511.x
14. Xu, MZ, Yao, TJ, Lee, NP, Ng, IO, Chan, YT, Zender, L, et al. Yes-associated protein is an independent prognostic marker in hepatocellular carcinoma. Cancer. (2009) 115(19):4576–85. doi:10.1002/cncr.24495
15. Kim, GJ, Kim, H, and Park, YN. Increased expression of Yes-associated protein 1 in hepatocellular carcinoma with stemness and combined hepatocellular-cholangiocarcinoma. PLoS One. (2013) 8(9):e75449. doi:10.1371/journal.pone.0075449
16. Vaupel, P, and Mayer, A. Hypoxia in cancer: significance and impact on clinical outcome. Cancer Metastasis Rev. (2007) 26(2):225–39. doi:10.1007/s10555-007-9055-1
17. McDonald, PC, Winum, JY, Supuran, CT, and Dedhar, S. Recent developments in targeting carbonic anhydrase IX for cancer therapeutics. Oncotarget. (2012) 3(1):84–97. doi:10.18632/oncotarget.422
18. Semenza, GL. Targeting HIF-1 for cancer therapy. Nat Rev Cancer. (2003) 3(10):721–32. doi:10.1038/nrc1187nrc1187
19. Rhee, H, Nahm, JH, Kim, H, Choi, GH, Yoo, JE, Lee, HS, et al. Poor outcome of hepatocellular carcinoma with stemness marker under hypoxia: resistance to transarterial chemoembolization. Mod Pathol. (2016) 29(9):1038–49. doi:10.1038/modpathol.2016.111
20. Wei, H, Xu, Z, Liu, F, Wang, F, Wang, X, Sun, X, et al. Hypoxia induces oncogene yes-associated protein 1 nuclear translocation to promote pancreatic ductal adenocarcinoma invasion via epithelial-mesenchymal transition. Tumour Biol. (2017) 39(5):1010428317691684. doi:10.1177/1010428317691684
21. Lee, Y, Park, H, Lee, H, Cho, JY, Yoon, YS, Choi, YR, et al. The clinicopathological and prognostic significance of the gross classification of hepatocellular carcinoma. J Pathol Transl Med. (2018) 52(2):85–92. doi:10.4132/jptm.2017.11.13
22. Kang, I, Jang, M, Lee, JG, Han, DH, Joo, DJ, Kim, KS, et al. Subclassification of microscopic vascular invasion in hepatocellular carcinoma. Ann Surg. (2020). doi:10.1097/SLA.0000000000003781
23. Yan, L, Cai, Q, and Xu, Y. Hypoxic conditions differentially regulate TAZ and YAP in cancer cells. Arch Biochem Biophys. (2014) 562:31–6. doi:10.1016/j.abb.2014.07.024
24. Oh, SH, Swiderska-Syn, M, Jewell, ML, Premont, RT, and Diehl, AM. Liver regeneration requires Yap1-TGFbeta-dependent epithelial-mesenchymal transition in hepatocytes. J Hepatol. (2018) 69(2):359–67. doi:10.1016/j.jhep.2018.05.008
25. Seok, JY, Na, DC, Woo, HG, Roncalli, M, Kwon, SM, Yoo, JE, et al. A fibrous stromal component in hepatocellular carcinoma reveals a cholangiocarcinoma-like gene expression trait and epithelial-mesenchymal transition. Hepatology. (2012) 55(6):1776–86. doi:10.1002/hep.25570
26. Guo, Y, Pan, Q, Zhang, J, Xu, X, Liu, X, Wang, Q, et al. Functional and clinical evidence that TAZ is a candidate oncogene in hepatocellular carcinoma. J Cell Biochem. (2015) 116(11):2465–75. doi:10.1002/jcb.25117
27. Lee, K, Lee, KB, Jung, HY, Yi, NJ, Lee, KW, Suh, KS, et al. The correlation between poor prognosis and increased yes-associated protein 1 expression in keratin 19 expressing hepatocellular carcinomas and cholangiocarcinomas. BMC Cancer. (2017) 17(1):441. doi:10.1186/s12885-017-3431-1
28. Sun, PL, Kim, JE, Yoo, SB, Kim, H, Jin, Y, Jheon, S, et al. Cytoplasmic YAP expression is associated with prolonged survival in patients with lung adenocarcinomas and epidermal growth factor receptor tyrosine kinase inhibitor treatment. Ann Surg Oncol. (2014) 21(Suppl. 4):S610–8. doi:10.1245/s10434-014-3715-5
29. Rothzerg, E, Ingley, E, Mullin, B, Xue, W, Wood, D, and Xu, J. The Hippo in the room: targeting the Hippo signalling pathway for osteosarcoma therapies. J Cell Physiol. (2020) 236:1606–15. doi:10.1002/jcp.29967
Keywords: hepatocellular carcinoma, Hippo pathway, hypoxia, stemness, immunohistochemistry
Citation: Park H, Lee Y, Lee K, Lee H, Yoo JE, Ahn S, Park YN and Kim H (2021) The Clinicopathological Significance of YAP/TAZ Expression in Hepatocellular Carcinoma with Relation to Hypoxia and Stemness. Pathol. Oncol. Res. 27:604600. doi: 10.3389/pore.2021.604600
Received: 09 September 2020; Accepted: 12 January 2021;
Published: 01 March 2021.
Edited by:
László Kopper, Semmelweis University, HungaryCopyright © 2021 Park, Lee, Lee, Lee, Yoo, Ahn, Park and Kim. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Young Nyun Park, eW91bmcwNjA4QHl1aHMuYWM=; Haeryoung Kim, aGFlcnlvdW5nLmtpbUBzbnUuYWMua3I=
†These authors share first authorship
